AccuraFil high capacity HEPA air filter with deep pleated microglass fiber media and coated galvanized steel Box-frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.
AccuraFil high capacity HEPA air filter with deep pleated microglass fiber media and coated galvanized steel with double turn flange DTF frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.

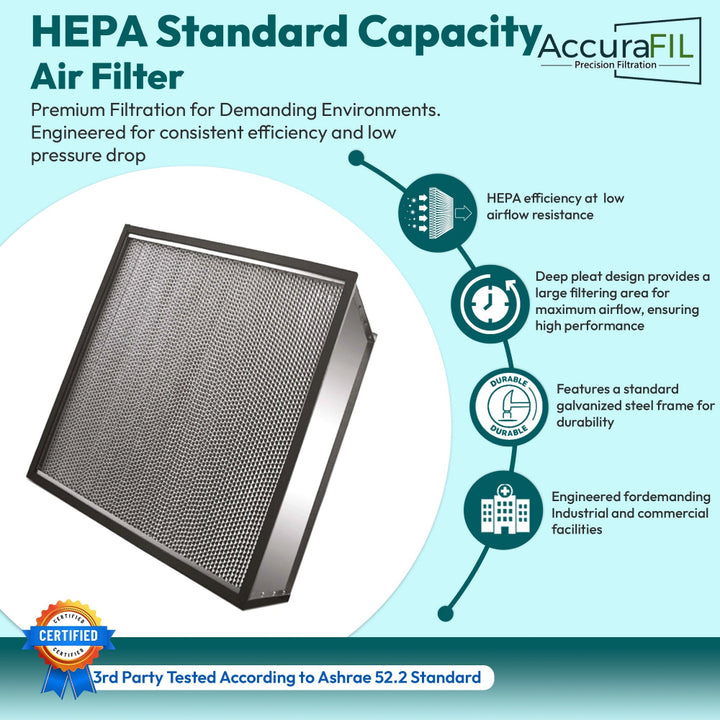

AccuraFil standard capacity HEPA air filter with deep pleated microglass fiber media and coated galvanized steel frame, designed for particulate filtration in commercial and industrial facilities like data centers, hospitals and cleanrooms.
Comparison chart of different AccuraFil HEPA Fiberglass air filters, showing filter images and key specifications for industrial and commercial use.
Isometric view of a double turn flange HEPA Air filter with deep plated microglass media with labeled dimensions on a white background.
Isometric view of box A Shrae Cell Air filter with deep plated microglass media with labeled dimensions on a white background.

HEPA SC FILTER _ 12x24x12 _ Pack of 2 Filters

$495.68From $325.29

Engineered Air Filters for Industrial & Commercial HVAC Systems

Select Filter Specifications:

HEPA-Actual Size: W x H x D (in.): Choose an option

HEPA-Actual Size: W x H x D (in.): Choose an option
12 x 24 x 11.5
11 3/8 x 23 3/8 x 11.5

HEPA Rating (EN 1822): Choose an option

HEPA Rating (EN 1822): Choose an option
H13 / 99.99%
E12 / 99.97%

HEPA-Frame Design: GI DTF - Neoprene Gasket on the Downstream Side

HEPA-Frame Design: GI DTF - Neoprene Gasket on the Downstream Side
GI DTF - Neoprene Gasket on the Downstream Side
Add to Wishlist
SKU:

icons of acceptable form of secured payment
Description

STANDARD CAPACITY HEPA FILTER

Deep-pleat Design for Superior Dust Capture and Airflow

πŸ”¬

Advanced Filtration Technology

  • The HEPA SC Filter utilizes micro glass fiber paper media arranged in deep pleats.
  • Deep pleat media design allows for a large filtering area, ensuring maximum airflow during high air volumes and delivering high performance.
βš™οΈ

Superior Construction

  • Comes with a standard galvanized steel frame, with optional SS, Aluminum, or MDF frame available.
  • The pleated media is evenly and precisely positioned using corrugated aluminum separators with hemmed edges for added strength and media protection.
πŸ›‘οΈ

Reliable Performance

  • Each filter undergoes individual scan testing per EN 1822 to ensure leak-proof performance. Test results are labeled and affixed to each filter.
  • Engineered for demanding industrial and commercial facilities.

Technical Specifications

Specification Details
Type Deep pleat construction
Filter Grades (EN 1822) E12 / H13 / H14
MPPS Efficiency 99.5% / 99.95% / 99.995%
Efficiency @ 0.3ΞΌ 99.97% / 99.99% / 99.999%
Filter Media Glass Fine Microfibers
Media Separator Corrugated aluminum separator
Frame SS / GI / Al / MDF
Media Sealant Two-part Poly-Urethane
Gasket Seamless PU / Neoprene
Maximum Temperature 176Β°F
Final Pressure Drop 2.00" wg (Recommended)
Fire Rating UL Classified
HEPA Filter Deep Pleat UL Classified 80Β°C Max Temp
